WASHABLE STICKY MAT
DYCEM is a smooth surface with natural tack and high degree of short-range electromagnetic forces (Van der Waals) polymeric flooring designed to attract, collect and retain 99% particles, ranging from 0.1 micron to 100 micron from wheeled traffic and heavier pedestrian flows. Semi-permanently installed, it is the most cost and time effective way of controlling all forms of foot, wheel and air borne contamination, preventing particles and microbes from entering into critical areas.
Distinctive Features of
CLEANZONE CZ01
To Attract, Collect & Retain Particles from Pedestrian Shoe Soles & Lightweight Trolley Wheels
Load Capacity: 1 ton below
DYCEM CleanZone mats are reusable antistatic and antimicrobial floor mats made from a special polymer blend that helps control contamination. They prevent up to 99.9% of shoe and wheel-borne contamination and 75% of airborne contaminants from entering controlled environments. Suitable for pedestrian and light-wheeled traffic, these mats offer a long-term, sustainable solution compared to disposable shoe covers, sticky mats, and disinfectants.
- Customizable: Available in custom sizes, shapes, colors, and branding options to meet facility needs.
- Measurable Efficacy: Tested annually for efficiency by trained technician.
- Effective Contamination Control: Captures particulate from shoes soles and wheels with no downtime.
- Long-Term Solution: Average lifespan of 3+ years; cleaned daily or per shift.
- Sustainable: No daily disposable waste. It is washable, reuseable & recyclable . Greener approach.
- Load Capacity: Able to withstand load up to 1 ton weight.
- Pedestrian entrances and exits to controlled areas
- Insides gowning rooms, airlocks (PALs), and air shower room
- In hallways or between different product lines or processes
- Layered between ISO levels or hygiene zones

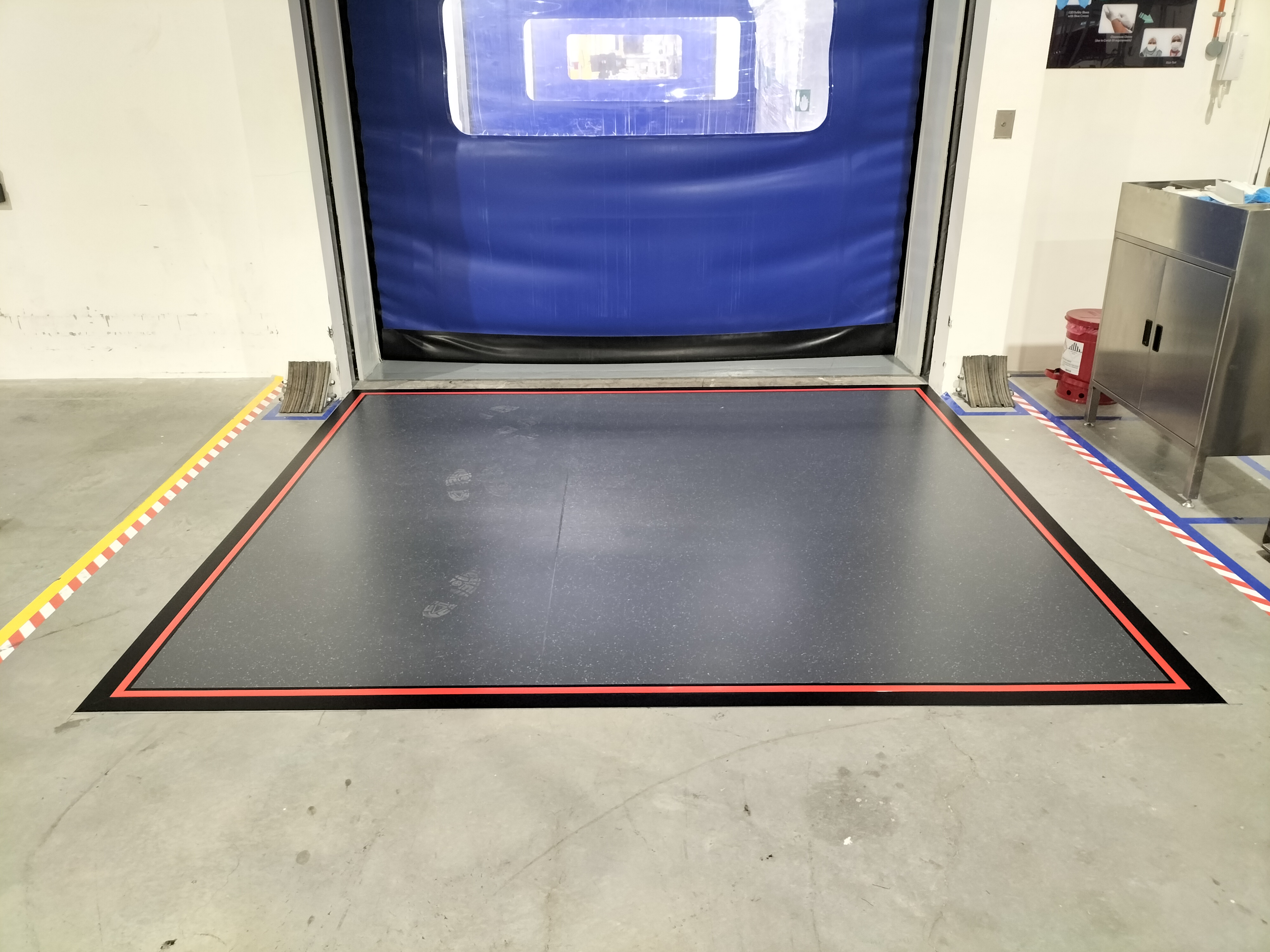

WORKZONE CZ02
To Attract, Collect & Retain Particles from Heavy Weight Trolley Wheels & Forklift Tires
Load Capacity: 5 tons below
DYCEM WorkZone mats are designed for heavy-wheeled traffic, capable of withstanding up to 1280 lbs/in² (90 kg/m²). Made from specialty polymeric compounds, these mats prevent up to 99.9% of floor-level contamination and 75% of airborne contamination. They offer a long-term, reusable solution, significantly improving decontamination compared to less effective manual methods for heavy traffic.
- Customizable: Available in custom sizes, shapes, colors, and branding options to suit facility needs.
- Measurable Efficacy: Tested annually for efficiency by trained technician.
- Effective Contamination Control: Handles heavy-wheeled traffic smoothly with minimal downtime, preventing floor-level contamination.
- Long-Term Solution: Average lifespan of 3+ years; cleaned daily or per shift.
- Sustainable: No daily disposable waste, reduces water usage for cleaning. Greener approach.
- Load Capacity: Able to withstand load up to 5 tons weight.
- Warehouse & material entrances and exits to controlled areas
- Inside airlocks (MALs), and product transfer areas
- In hallways or between different product lines or processes
- Layered between ISO levels or hygiene zones
FLOATING SYSTEM CZ01
FOR PEDESTRIAN & LIGHT WHEELED TROLLEY
Load Capacity: 800 kg below

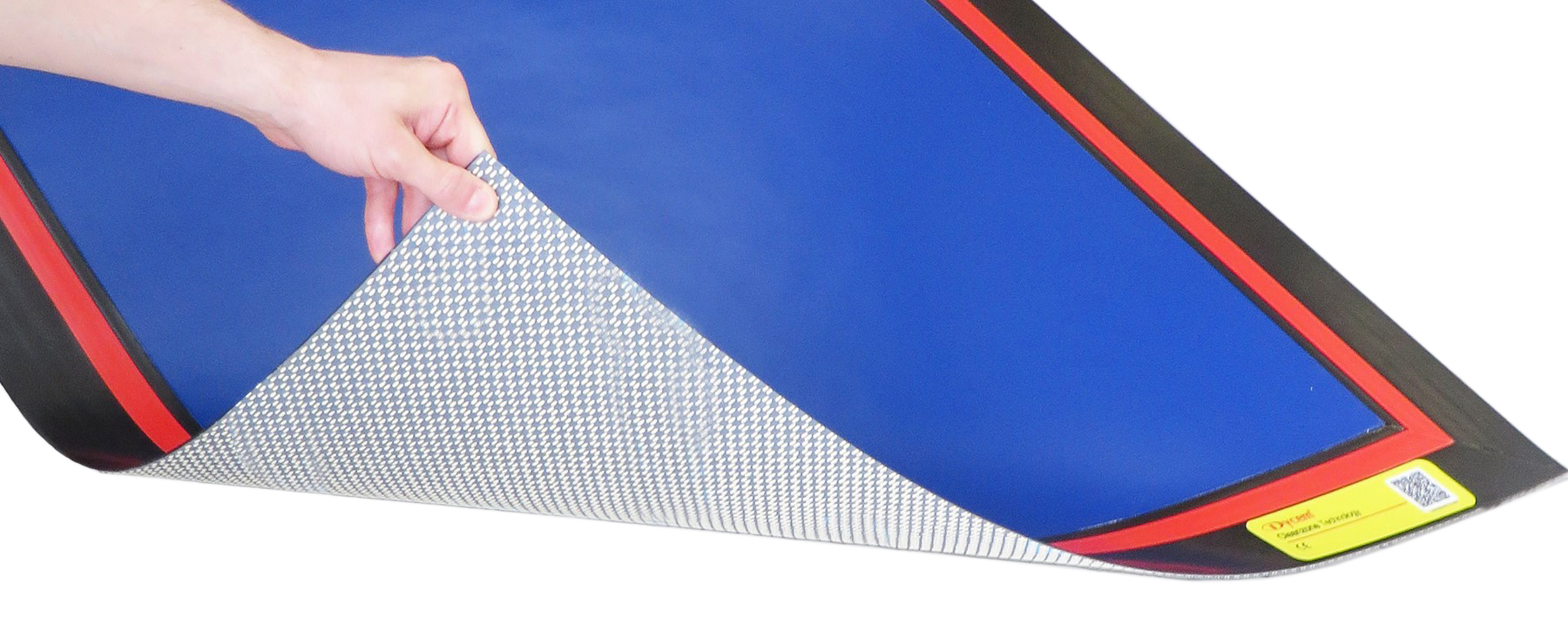

DYCEM Floating System is installed onto a 1.2mm (1/16") thick isolator membrane, the floating floor system allows the flexibility of having DYCEM self-installed or laid loose.
The underside of the floating floor system is an impervious vinyl layer resistant to moisture, non-absorbent and contains multiple peduncles in order to minimise sub floor show-through, maintain rigidity of the DYCEM product and ensure firm grip to the subfloor when in use.
This application is suitable in locations more suited to a product where long term adhesion to the subfloor is not possible. The floating floor system is ideal for a range of smooth and rough subfloors and is easily self installed in a matter of minutes, eliminating the need for any lengthy installations.
BENCH MAT CZ06
FOR PREVENT MOVEMENT OF EQUIPMENT
The Bench Mat prevents movement of your equipment during your work, and reduces the risk of losing small components. It can also act as a cushion for fragile equipment that could break easily. It is approved for use in all classes of cleanroom facilities, including microelectronics, micro mechanics, semiconductor, pharmaceutical, biotech and medical devices.
Designed to safely drain static discharge (10⁸ ohms resistance), this is closed cell mat is non-abrasive, non-particulating (HelmkeDrum Test) and requires no adhesives or outgassing. Supplied with earthing studs.
Color Available : Grey , Black , Blue.
Distinctive Features: Non-slip, Antistatic & Antimicrobial, no adhesive & no outgassing.
| Product Code | Description | Size (W x L) (m) | |
|---|---|---|---|
| CZ06/BM60045BK | Bench Mat 2mm thick Black | 0.6m | 0.45m |
| CZ06/BM60045BL | Bench Mat 2mm thick Blue | 0.6m | 0.45m |
| CZ06/BM60045GR | Bench Mat 2mm thick Grey | 0.6m | 0.45m |
| CZ06/BM60120BK | Bench Mat (Roll) 2mm thick Black | 0.6m | 12.0m |
| CZ06/BM60120BL | Bench Mat (Roll) 2mm thick Blue | 0.6m | 12.0m |
| CZ06/BM60120GR | Bench Mat (Roll) 2mm thick Grey | 0.6m | 12.0m |
